Node.Js Streams

Intro

Node.js has a built-in support for streams. Streams are a fundamental concept in Node.js that enable efficient data handling, esp when dealing with large amounts of information OR working with data in real time.

Summary:

  1. Explore the concept of streams in Node.js
  2. Understand the different types of streams available (Readable, Writable, Duplex, and Transform)
  3. Discuss best practices for working with streams effectively.

What are Node.js Streams?

Streams enable efficient data handling by reading or writing input/output sequentially. They are handy for file operations, network communications, and other forms of end-to-end data exchange.

Streams process data in small, sequential chunks instead of loading the entire dataset into memory at once. This is useful when working with extensive data, where the file size may exceed the available memory. Streams make it possible to process data in smaller pieces, making it feasible to work with larger files

Source : link

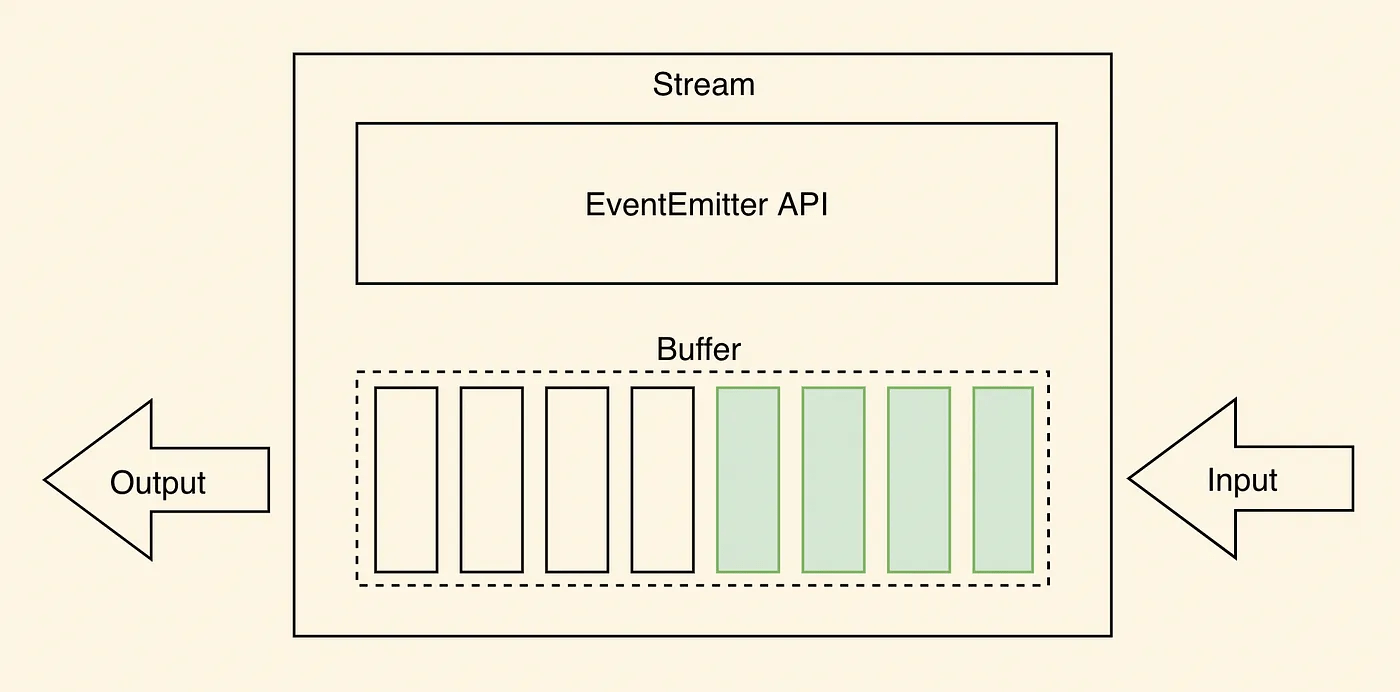

As the image above, data is typically read in chunks or as a continuous flow when reading from a stream. Data chunks read from the stream can be stored in buffers. Buffers provide temporary storage space for holding the chunks of data until they can be processed further.

Example : Consider the scenario of a live stock market data feed. In financial applications, real-time updates of stock prices and market data are crucial for making informed decisions. Instead of fetching and storing the entire data feed in memory (which can be substantial and impractical) streams enable the application to process the data in smaller, continuous chunks. This approach conserves memory and eliminates the need to wait for the entire data feed to be available before taking action.

Why use streams?

  1. Memory Efficiency

There is no need to load large amounts of data into memory before processing. Data is processed in smaller, manageable chunks, reducing memory requirements and efficiently utilizing system resources.

  1. Time efficiency

Streams enable immediate data processing as it becomes available without waiting for the entire payload to arrive, improving response times and performance.

Types of Node.js Streams

1. Readable Streams

Allows data to be read from a source, such as a file or network socket. Data is sent sequentially and can be consumed by attaching listeners to the data event. Readable streams can be in a flowing or a paused state, depending on how the data is consumed.

const fs = require('fs');

// Create a Readable stream from a file
const readStream = fs.createReadStream('the_princess_bride_input.txt', 'utf8');

// Readable stream 'data' event handler
readStream.on('data', (chunk) => {
  console.log(`Received chunk: ${chunk}`);
});

// Readable stream 'end' event handler
readStream.on('end', () => {
  console.log('Data reading complete.');
});

// Readable stream 'error' event handler
readStream.on('error', (err) => {
  console.error(`Error occurred: ${err}`);
});

The fs module is used to create a readable stream using createReadStream() method, passing the file path the_princess_bride_input.txt and encoding utf8 as arguments. The readable stream reads data from the file in small chunks.

We attach event handlers to the Readable stream to handle different events. The data event is emitted when a chunk of data is available to be read. The end event is emitted when the readable stream has finished reading all the data from the file. The error event is emitted if an error occurs during the reading process.

2. Writable Streams

Writable streams handle the writing of data to a destination, such as a file or network socket. They provide methods like write() and end() to send data to the stream. Writable streams can be used to write large amounts of data in a chunked manner, preventing memory overflow.

const fs = require('fs');

// Create a Writable stream to a file
const writeStream = fs.createWriteStream('the_princess_bride_output.txt');

// Writable stream 'finish' event handler
writeStream.on('finish', () => {
  console.log('Data writing complete.');
});

// Writable stream 'error' event handler
writeStream.on('error', (err) => {
  console.error(`Error occurred: ${err}`);
});

// Write a quote from "The  to the Writable stream
writeStream.write('As ');
writeStream.write('You ');
writeStream.write('Wish');
writeStream.end();

The fs module is used to create a Writable stream using the createWriteStream() method. We specify the file path the_princess_bride_output.txt where the data will be written.

The finish event is emitted when the Writable stream has finished writing all the data. The error event is emitted if an error occurs during the writing process. The write() method is used to write individual chunks of data to the Writable stream. In this example, we write the strings ‘As ‘, ‘You ‘, and ‘Wish’ to the stream. Finally, we call end() to signal the end of data writing.

By using the Writable stream and listening to the corresponding events, you can efficiently write data to a destination and perform any necessary cleanup or follow-up actions once the writing process is complete.

3. Duplex Streams

Duplex streams allow data to be both read from and written to a source simultaneously. Duplex streams are bidirectional and offer flexibility in scenarios where reading and writing happen concurrently.

const { Duplex } = require("stream");

class MyDuplex extends Duplex {
  constructor() {
    super();
    this.data = "";
    this.index = 0;
    this.len = 0;
  }

  _read(size) {
    // Readable side: push data to the stream
    const lastIndexToRead = Math.min(this.index + size, this.len);
    this.push(this.data.slice(this.index, lastIndexToRead));
    this.index = lastIndexToRead;
    if (size === 0) {
      // Signal the end of reading
      this.push(null);
    }
  }

  _write(chunk, encoding, next) {
    const stringVal = chunk.toString();
    console.log(`Writing chunk: ${stringVal}`);
    this.data += stringVal;
    this.len += stringVal.length;
    next();
  }
}

const duplexStream = new MyDuplex();
// Readable stream 'data' event handler
duplexStream.on("data", (chunk) => {
  console.log(`Received data:\n${chunk}`);
});

// Write data to the Duplex stream
// Make sure to use a quote from "The Princess Bride" for better performance :)
duplexStream.write("Hello.\n");
duplexStream.write("My name is Inigo Montoya.\n");
duplexStream.write("You killed my father.\n");
duplexStream.write("Prepare to die.\n");
// Signal writing ended
duplexStream.end();

We extend the Duplex class from the stream module to create a Duplex stream. The Duplex stream represents both a readable and writable stream (which can be independent of each other).

We define the _read() and _write() methods of the Duplex stream to handle the respective operations. In this case, we are tying the write stream and the read stream together, but this is just for the sake of this example - Duplex stream supports independent read and write streams.

In the _read() method, we implement the readable side of the Duplex stream. We push data to the stream usingthis.push() , and when the size becomes 0, we signal the end of the reading by pushing null to the stream.

In the _write() method, we implement the writable side of the Duplex stream. We process the received chunk of data and add it to the internal buffer. The next() method is called to indicate the completion of the write operation.

Event handlers are attached to the Duplex stream’s data event to handle the readable side of the stream. To write data to the Duplex stream, we can use the write() method. Finally, we call end() to signal the end of writing.

4. Transform Streams

Transform streams are a special type of duplex stream that modify or transform the data while it passes through the stream. They are commonly used for data manipulation tasks, such as compression, encryption, or parsing. Transform streams receive input, process it, and emit modified output.

const { Transform } = require('stream');

// Create a Transform stream
const uppercaseTransformStream = new Transform({
  transform(chunk, encoding, callback) {
    // Transform the received data
    const transformedData = chunk.toString().toUpperCase();

    // Push the transformed data to the stream
    this.push(transformedData);

    // Signal the completion of processing the chunk
    callback();
  }
});

// Readable stream 'data' event handler
uppercaseTransformStream.on('data', (chunk) => {
  console.log(`Received transformed data: ${chunk}`);
});

// Write a classic "Princess Bride" quote to the Transform stream
uppercaseTransformStream.write('Have fun storming the castle!');
uppercaseTransformStream.end();

The Transform class is used from the stream module to create a Transform stream. We define the transform() method within the transform stream options object to handle the transformation operation. In the transform() method, we implement the transformation logic. In this case - we convert the received chunk of data to uppercase using chunk.toString().toUpperCase(). We use this.push() to push the transformed data to the stream. And finally, we call callback() to indicate the completion of processing the chunk.

We attach an event handler to the Transform stream’s data event to handle the readable side of the stream. To write data to the Transform stream, we use the write() method. And we call end() to signal the end of writing.

Using Node.js streams

To better grasp the practical implementation of Node.js Streams, let’s consider an example of reading data from a file and writing it to another file using streams after transforming and compressing.

const fs = require('fs');
const zlib = require('zlib');
const { Readable, Transform } = require('stream');

// Readable stream - Read data from a file
const readableStream = fs.createReadStream('classic_tale_of_true_love_and_high_adventure.txt', 'utf8');

// Transform stream - Modify the data if needed
const transformStream = new Transform({
  transform(chunk, encoding, callback) {
    // Perform any necessary transformations
    const modifiedData = chunk.toString().toUpperCase(); // Placeholder for transformation logic
    this.push(modifiedData);
    callback();
  },
});

// Compress stream - Compress the transformed data
const compressStream = zlib.createGzip();

// Writable stream - Write compressed data to a file
const writableStream = fs.createWriteStream('compressed-tale.gz');

// Pipe streams together
readableStream.pipe(transformStream).pipe(compressStream).pipe(writableStream);

// Event handlers for completion and error
writableStream.on('finish', () => {
  console.log('Compression complete.');
});

writableStream.on('error', (err) => {
  console.error('An error occurred during compression:', err);
});

We read a file using a readable stream, transform the data to uppercase and compress it using two transform streams (one is ours, one is the built-in zlib transform stream), and finally write the data to a file using a writable stream.

We create a readable stream using fs.createReadStream() to read data from the input file. A transform stream is created using the Transform class. Here, you can implement any necessary transformations on the data (for this example, we used toUpperCase() again). Then we create another transform stream using zlib.createGzip() to compress the transformed data using the Gzip compression algorithm. And finally, a writable stream is created using fs.createWriteStream() to write the compressed data to the compressed-tale.gz file.

The .pipe() method is used to connect the streams together in a sequential manner. We start with the readable stream and pipe it to the transform stream, which is then piped to the compress stream, and finally, the compress stream is piped to the writable stream. It allows you to establish a streamlined data flow from the readable stream through the transform and compress streams to the writable stream. Lastly, event handlers are attached to the writable stream to handle the finish and error events.

Using pipe() simplifies the process of connecting streams, automatically handling the data flow, and ensuring efficient and error-free transfer from a readable stream to a writable stream. It takes care of managing the underlying stream events and error propagation.

On the other hand, using events directly gives developers more fine-grained control over the data flow. By attaching event listeners to the readable stream, you can perform custom operations or transformations on the received data before writing it to the destination.

When deciding whether to use pipe() or events, the following are some factors you should consider.

Simplicity: If you need a straightforward data transfer without any additional processing or transformation, pipe() provides a simple and concise solution.

Flexibility: If you require more control over the data flow, such as modifying the data before writing or performing specific actions during the process, using events directly gives you the flexibility to customize the behavior.

Error handling: Both pipe() and event listeners allow for error handling. However, when using events, you have more control over how errors are handled and can implement custom error-handling logic.

It’s important to choose the approach that best suits your specific use case. For simple data transfers, pipe() is often the preferred choice due to its simplicity and automatic error handling. However, if you need more control or additional processing during the data flow, using events directly provides the necessary flexibility.

Best practices

When working with Node.js Streams, it’s important to follow best practices to ensure optimal performance and maintainable code.

1. Error handling :

Streams can encounter errors during reading, writing, or transformation. It’s important to handle these errors by listening to the error event and taking appropriate action, such as logging the error or gracefully terminating the process.

2. Use appropriate high-water marks :

The high-water mark is a buffer size limit that determines when a readable stream should pause or resume its data flow. It’s essential to choose an appropriate high-water mark based on the available memory and the nature of the data being processed. This prevents memory overflow or unnecessary pauses in the data flow.

3. Optimize memory usage :

Since streams process data in chunks, it’s important to avoid unnecessary memory consumption. Always release resources when they are no longer needed, such as closing file handles or network connections after the data transfer is complete.

4. Leverage stream utilities :

Node.js provides several utility modules, such as stream.pipeline() and stream.finished(), which simplifies stream handling and ensures proper cleanup. These utilities handle error propagation, promise integration, and automatic stream destruction, reducing manual boilerplate code.

5. Implement flow control mechanisms :

When a writable stream cannot keep up with the rate of data being read from a readable stream, by the time the readable stream finish reading, there can be a lot of data left in the buffer. In some scenarios, this might even exceed the amount of available memory. This is called backpressure. To handle backpressure effectively, consider implementing flow control mechanisms, such as using the pause() and resume() methods or leveraging third-party modules like pump or through2.

Acknowledgement link
