Multi-threading with nodejs

Overview

  1. What is Multithreading
  2. How does Node.js handle asynchronous operations.
  3. How to use Node’s worker-threads module to create and manage threads.

History

Computers are becoming more powerful thanks to GPUs and multi-cre CPUs, and modern applications leverage threads(independent execution units in a process) to maximize application performance

However, JavaScript is a synchronous, blocking, single-threaded language. It was initially created to run on browsers, allowing for much of modern web page interactions, form validations, animations, and so on. Running operations on a single thread can block the synchronous execution flow and result in bottlenecks.

Ryan Dahl made Node.js to avoid using threads:

  • “Thread-based networking is relatively inefficient and very difficult to use. Furthermore, users of Node.js are free from worries of dead-locking the process, since there are no locks.” - Ryan Dahl, creator of Node.js

  • “Almost no function in Node.js directly performs I/O, so the process never blocks except when the I/O is performed using synchronous methods of the Node.js standard library. Because nothing blocks, scalable systems are very reasonable to develop in Node.js.

What is Multithreading?

Multithreading is a program execution model that allows multiple threads to be created within a process. The threads execute independently but concurrently share process resources.

Single thread vs Multithreading

We need to understand both single thread and multithread processes to know their differences.

Assume that there are four tasks that a process needs to perform.

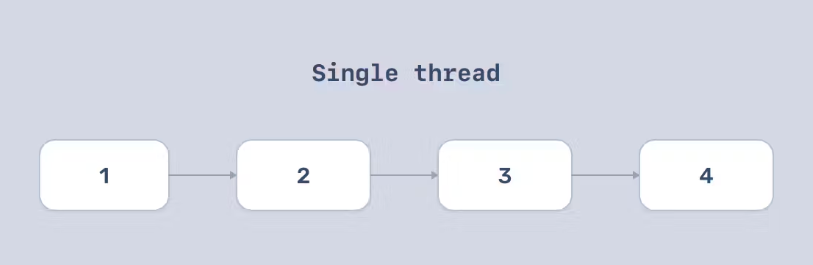

A single thread process would execute the tasks one by one as the image below. Each execution needs to wait for the preceding operation to start executing.

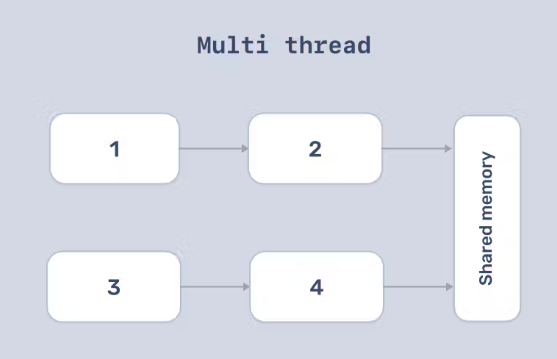

However in a multithreaded process, the tasks can run concurrently in different threads as the image below.

Is Node.js Single Threaded?

Depends. If you use Node.js, you will probably be using more than a single thread.

When Node.js encounters operations that can prevent other operations from running (ex: reading data from a database, file operations), it delegates them to a separate pool of threads managed by a C library known as libuv.

Node.js is single-threaded at its base, but it can run some operations in parallel. We cannot create threads that share the same ‘context’ though.

Running Parallel Child Processes

We spin up a child process using Node’s child_process module. The spun-up child processes or subprocesses can communicate through a messaging system. They run separately, allowing you to divide and run your application script from different processes.

A child_processprovides four different ways to create a child:

1.   spawn()
2.   exec()
3.   execFile()
4.   fork()

A Quick demo using the fork() method.

The fork() method allows you to create a child process that’s connected to the main process currently running your code. It accepts the following three parameters:

  • a module path string for a JS file to execute on the child process (required)
  • an array of strings to pass as the child processes’ arguments
  • The options object to pass to the child process
fork("sub.js", ["arguments"], { cwd: process.cwd() });

Let’s create the main.js file, import the child_process module, and create a child process from a fork.

// main.js
const child_proc = require("child_process");

console.log("running main.js");
const sub = child_proc.fork("./sub.js");

// sending message to subprocess
sub.send({ from: "parent" });

// listening to message from subprocess
sub.on("message", (message) => {
  console.log("PARENT got message from " + message.from);
  sub.disconnect();
});

Then we’ll create a subprocess file — sub.js — in the same directory as main.js:

// sub.js
console.log("sub.js is running");

setTimeout(() => {
  // subprocess sending message to parent
  process.send({ from: "client" });
}, 2000);

// subprocess listening to message from parent
process.on("message", (message) => {
  console.log("SUBPROCESS got message from " + message.from);
});

Run main.js, which will print this in your terminal:

running main.js
sub.js is running
SUBPROCESS got message from parent
PARENT got message from client

What we’ve done is called multiprocessing. As the name implies, it’s different from multithreading because we are creating more processes.

In multithreading, a single process can have multiple code segments (threads) that run currently within the process.

In multiprocessing, the creation of a process is slow and resource-specific. In multithreading, however, it’s economical to create a thread.

What are Worker Threads?

Worker threads can run CPU-intensive JavaScript operations without blocking the event loop from running. Unlike child_process, worker_threads can share memory by transferring ArrayBuffer instances or sharing SharedArrayBuffer instances.

How to Use Worker Threads in Node.js

worker_threads became available in Node.js 10.5.0. Before this version, you couldn’t access the module unless you ran the Node.js program using the --experimental-worker flag.

$ node app.js --experimental-worker

Keep in mind this word of wisdom from the Node.js documentation “Workers (threads) are useful for performing CPU-intensive JavaScript operations. They do not help much with I/O-intensive work. The Node.js built-in asynchronous I/O operations are more efficient than Workers can be.”

Let’s create a simple example where we have a main file, make a worker thread from another file, and give the thread some data.

First, create the main file, main.js.

const { Worker } = require("worker_threads");

function doSomethingCPUIntensive(name) {
  return new Promise((resolve, reject) => {
    const worker = new Worker("./sub.js", { workerData: { name } });

    worker.on("message", resolve);
    worker.on("error", reject);
    worker.on("exit", (code) => {
      if (code !== 0) {
        reject(new Error(`stopped with exit code ${code}`));
      }
    });
  });
}

(async () => {
  try {
    const result = await doSomethingCPUIntensive("John");
    console.log("Parent: ", result);
  } catch (err) {
    console.log(err);
  }
})();

We create a worker by passing in the path to a file as the first argument and data as the second argument (the data passed is a clone, so we cannot refer to it from the worker thread).

Then we can listen to a series of events from the worker and act accordingly. For instance, if the worker thread is stopped, we can derive the exit code.

Next, we create a worker thread module script which, in our case, will be called sub.js:

// sub.js
const { workerData, parentPort } = require("worker_threads");

// you can do intensive synchronous stuff here
function theCPUIntensiveTask(name) {
  return `Hello World ${name}`;
}

const intensiveResult = theCPUIntensiveTask(workerData.name);

parentPort.postMessage({ intensiveResult });

workerData receives data that’s passed when the worker is created, and parentPort provides a method to return the result of theCPUIntensiveTask.

The worker thread is a great tool to run CPU-intensive operations, and can get much more complex than in the simple example above.

If you are running a Node.js version older than Node.js 11.7, use the --experimental-worker flag.

$ node --experimental-worker main.js

Running the script prints:

Parent:  { intensiveResult: 'Hello World John' }

Conclusion

Even though Node doesn’t traditionally support multithreading, worker threads provide a nice workaround (without the potential errors of race conditions common in threads).
